Wireless video streaming for UAVs

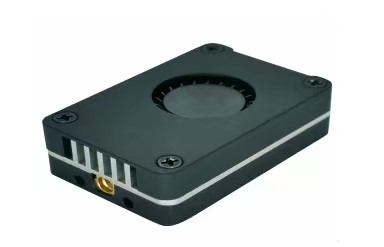

3W Image Transmitter VTX-F2-72

Features

◆    Channel 72CH, the maximum transmission distance is 7000 meters.

◆    Control protocol IRC Tramp, supports OSD parameter adjustment.

◆    Supports users to customize frequency points through IRC Tramp parameter adjustment software (any programming within the range of 4867-6100MHz).

◆    Power XPIT 25mW, 400mW, 800mW, 3000mW;

◆    High-efficiency DC/DC power supply supports 7-36V.

◆    Selected high-strength aluminum alloy CNC shell, plus built-in micro-turbo fan active heat dissipation, enhanced power stable transmission.

◆    The transmitter has its own temperature control protection function to prevent the transmitter from overheating due to long-term ground parameter adjustment.

◆    Support external audio input.

◆    Support 5V voltage output.

◆    Support Flying Tower installation, 30.5X30.5MM spacing, with M3 threaded holes.

2.5W Image Transmitter VTX-F2

Features

◆    Channel 48CH, maximum transmission distance 5000 meters;

◆    Control protocol IRC Tramp, support OSD parameter adjustment;

◆    Power: PIT 25mW, 400mW, 800mW, 2500mW;

◆    Wide voltage input supports 7-36V;

◆    Selected high-strength aluminum alloy CNC shell plus built-in micro-turbo fan active heat dissipation to enhance power and stable transmission;

◆    The transmitter has its own temperature control protection function to prevent the transmitter from overheating during long-term ground parameter adjustment;

◆    Support external audio input;

◆    Support 5V voltage output;

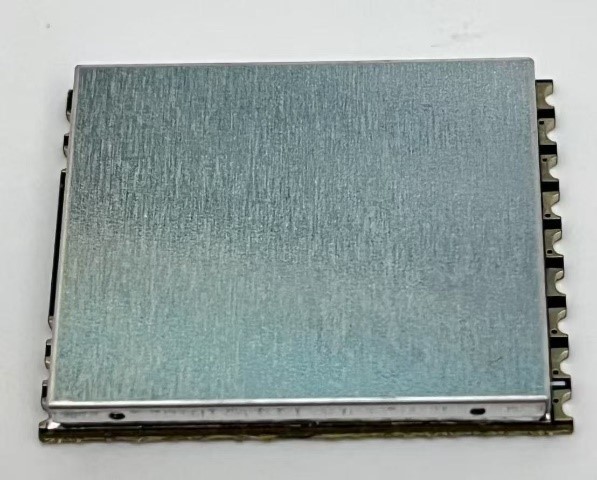

RX5808 wireless audio and video receiving module

Features

◆    Single 5V supply power

◆    High sensitivity -98dBm

◆    Radio Strength Indicator (RSSI)

◆    Can through the SPI interface external microcontroller, frequency set by the customer

◆    SPI interface

Application

◆    AV Sender

◆    Surveillance

◆    Baby Monitor

◆    Wireless Camera

◆    Wireless Audio

◆    Wireless Earphone
